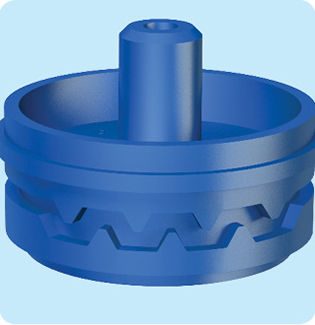

Click Tif HD - PC & PCNL



Nominal Discharges (lph)

1.3
2.0
3.0
4.0
8.0
12.0

For Click Tif HD- PCNL model

Opening Pressure - 0.8 kg/cm²
Closing Pressure - 0.3 kg/cm²

Features & Benefits

Factory Sealed, Pressure Compensating Emitter
Available with two options, - Basic Pressure Compensating,PC, (Green housing), - Pressure Compensating Non- Leakage, PCNL (Grey housing).
Clog Resistant, Wide Labyrinth
Strong turbulent flow in the labyrinth helps for continual flushing and cleaning.
Dynamic Self Cleaning Mechanism
Dynamic movement of diaphragm retracts dynamically to throw away particles which are blocking the emitter.
Precision Pressure Compensation
High quality injection moulded liquid silicone diaphragm ensures precision in pressure compensation helps to maintain high discharge uniformity.
Barbed Inlet with Narrow Inlet Filter
Barbed inlet suitable to connect directly on 4mm extension tube or can be installed on Polytube. Precision inlet filters prevents entrance of most of the impurities.
Extended Outlet
Available in two options, - Barbed outlet - For connection of 3 mm ID extension tubing for right placement of water. - Tapered outlet - For connection of multi outlet connectors or anti-bug cap.
Wide Pressure Compensating Range
Pressure regulation range 0.5 - 4 kg/cm2 pressure (7.11 to 56 .88psi)
Optional Anti-bug Cap
Prevents entry of ants/bugs inside the emitter.

Applications

  • For orchards, vineyards, greenhouses, nurseries and landscape.
  • For pulse irrigation and irrigation in soilless conditions.
  • Prevents surplus drainage in low places (PCNL model).
  • For areas with harsh topographical conditions.
  • Subsurface installation protects dripper from animal damage
  • For irrigation of pot-plants with single, two, four or multiple outlets.
